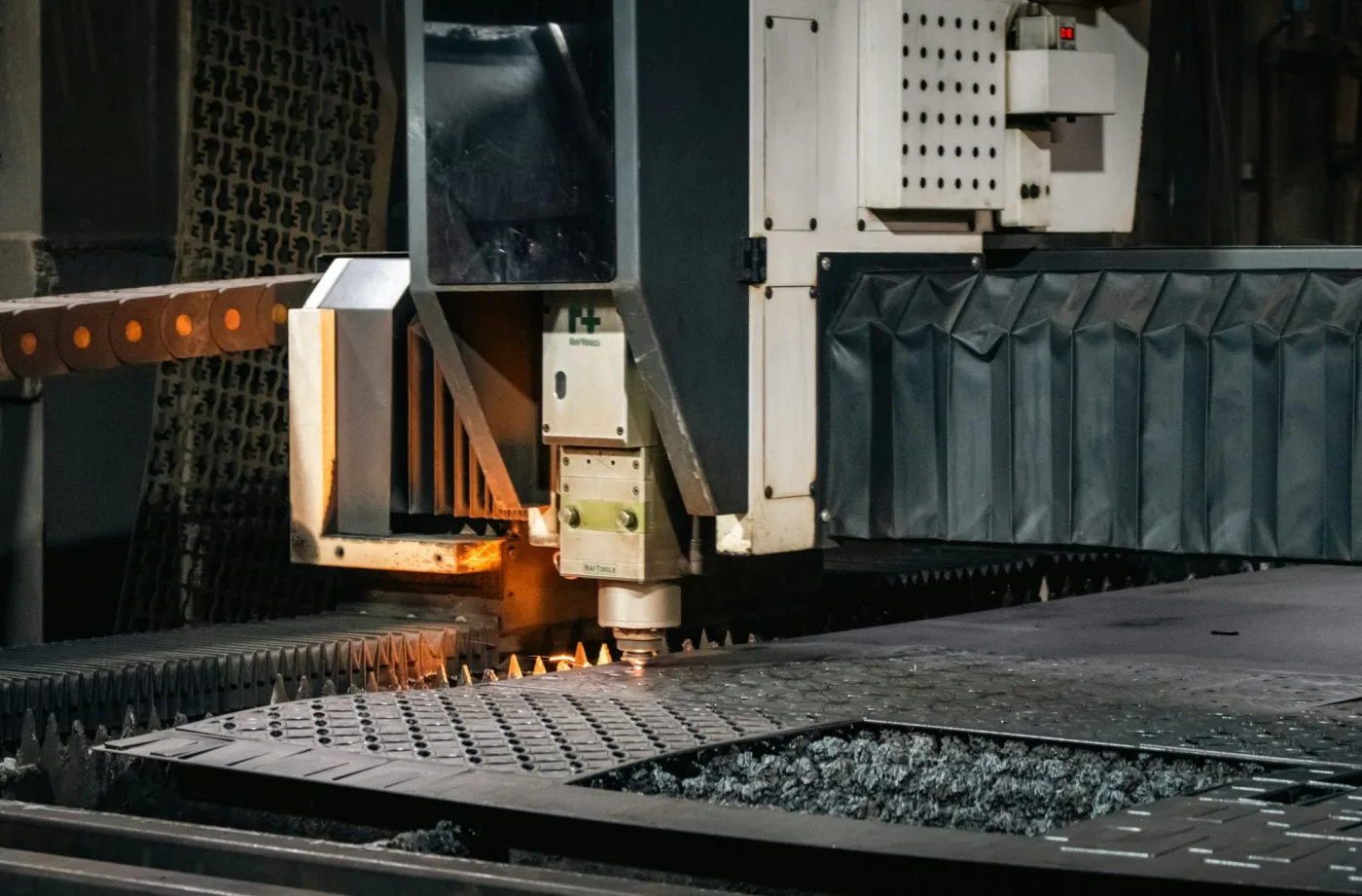

Laser cutting
12 kW fiber laser on a 3 × 12 m bed: carbon steel up to 40 mm and stainless up to 30 mm at ±0.1 mm.
Precision metal fabrication from Jeddah to the Gulf
Laser, oxy-fuel and plasma cutting, ASME B16.5 flanges, API 650 tanks and steel structures — one workshop from drawing to delivery since 2009.
Materials we work with
-
ASTM A36
-
S355JR
-
ASTM A516 Gr.70
-
ASTM A105
-
SS 304L
-
SS 316L
-
Duplex 2205
-
AL 5083
-
Hardox 450
-
Corten A
-
Galvanised G90
What we fabricate
Services under one roof
Cutting, forming, welding, fabrication and coating — one team follows your order from drawing review to delivery.
-
-
Oxy-fuel & plasma cutting
Thick plate up to 150 mm with four torches, plus 400 A plasma with 3D bevelling for weld prep.
-
Flanges
Weld neck, slip-on, blind and lap-joint flanges to ASME B16.5 and B16.47, with mill certificates.
-
Water & fuel tanks
Tanks from 5 to 2,000 m³ to API 650, coated and tested before handover.
-
Steel structures
Warehouses, hangars, pipe racks and platforms, fabricated and erected by AWS D1.1 qualified welders.
-
Bending & rolling
400-tonne CNC press brake over 6 m, and 4-roll plate rolling up to 30 mm.
+15
years in metal fabrication
About us
A workshop contractors have trusted since 2009
Metal Fabrication Workshop Co. started in 2009 as a cutting and welding shop in Jeddah Industrial City with eight technicians. Today more than 120 engineers, technicians and welders work from an 18,000 m² facility, serving oil & gas, desalination and construction projects across Saudi Arabia and the GCC.
We work straight from your drawings: we review the file, recommend the right cutting method and material, then fabricate, inspect and deliver on time.
- Free engineering review of every drawing
- Welders qualified to AWS D1.1 and ASME IX
- Mill certificates and full material traceability
- Delivery by our own fleet across KSA and the GCC
Machinery
Modern machinery for every thickness
Cutting, forming and welding lines with a capacity above 60 tonnes a day.
-
12 kW fiber laser (plate)
- Bed size
- 3000 × 12000 mm
- Carbon steel
- up to 40 mm
- Stainless steel
- up to 30 mm
- Aluminium
- up to 25 mm
- Accuracy
- ±0.1 mm
-
CNC oxy-fuel & plasma gantry
- Bed size
- 4000 × 14000 mm
- Oxy-fuel
- up to 150 mm (4 torches)
- 400 A plasma
- up to 50 mm
- Specification
- 3D bevel head ±45°
-
400-tonne CNC press brake
- Bending length
- 6000 mm
- Force
- 400 tonnes
- Specification
- 6-axis CNC back gauge
-
4-roll plate rolling machine
- Plate width
- 3000 mm
- Thickness
- up to 30 mm
- Specification
- Edge pre-bending
- Minimum diameter
- 500 mm
By the numbers
Experience measured in tonnes
From a small cutting shop in 2009 to an approved supplier for projects across KSA and the Gulf.
-
3,000 +
Projects delivered
-
25,000 +
Tonnes of steel fabricated
-
120 +
Engineers, technicians & welders
-
18,000 m²
Facility area
Industries
We fabricate for industries that cannot afford errors
We know the quality, safety and documentation each sector requires.
-
Oil & gas
Flanges, pipe racks, platforms and heavy parts for refineries, pumping stations and pipelines.
-
Water & desalination
Potable water tanks and corrosion-resistant stainless and duplex flanges for desalination and treatment plants.
-
Construction
Warehouse and industrial building frames, base plates, brackets and connections for contractors.
-
Food & dairy
Easy-clean 316L stainless tanks and parts for production and storage lines.
-
Petrochemicals
Storage tanks and pressure components with full traceability and NDT.
-
Infrastructure
Footbridges, barriers and steelwork for transport, municipal and port projects.
Our work
Completed projects
A selection of our work across Saudi Arabia and the Gulf.
-
Potable water tanks, 4 × 500 m³
Tanks · Rabigh · 2025
-
6,500 m² logistics warehouse frame
Structures · Jeddah · 2024
-
316L flange package for a desalination plant
Flanges · Yanbu · 2024
-
Laser-cut architectural façade panels
Cutting · Riyadh · 2025
-

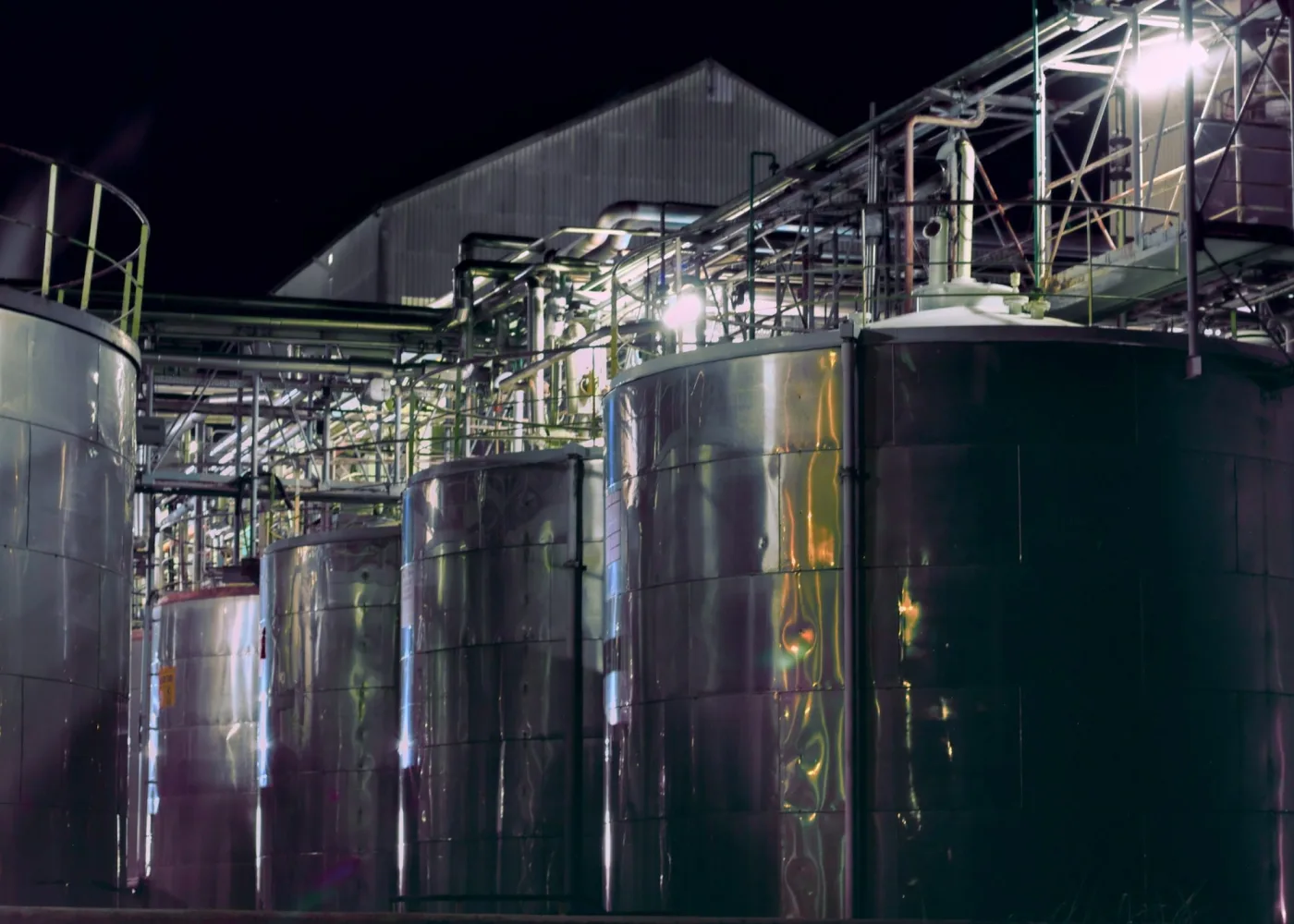

Stainless process tanks for a dairy plant
Tanks · Al-Kharj · 2023
-
Pipe rack and access platforms
Structures · Jubail · 2023
How we work
From drawing to delivery
-
Step 1: Drawing
Send a DWG, DXF, STEP or PDF file with material, thickness and quantity.
-
Step 2: Quote
Engineering review and a detailed quote with lead time within one working day.
-
Step 3: Cutting
Laser, plasma or oxy-fuel to suit thickness and tolerance, nested to cut waste.
-
Step 4: Forming
CNC bending on a 400-tonne press brake and 4-roll plate rolling up to 30 mm.
-
Step 5: Welding
MIG, TIG and submerged-arc welding to procedures qualified to AWS D1.1 and ASME IX.
-
Step 6: Inspection
Dimensional checks, NDT and pressure testing where needed, with a quality report.
-
Step 7: Delivery
Coated, packed and delivered by our own fleet across KSA and the GCC.
Coverage
From Jeddah to the whole Gulf
Our workshop is in Jeddah Industrial City, minutes from Jeddah Islamic Port, and our own trucks reach every region of the Kingdom.
We ship by road to every GCC country, with customs clearance and certificates of origin.
- sa Saudi Arabia All regions · 1–3 days
- ae United Arab Emirates Road freight · 4–6 days
- kw Kuwait Road freight · 4–5 days
- qa Qatar Road freight · 4–6 days
- bh Bahrain Via King Fahd Causeway · 3–5 days
- om Oman Road freight · 5–7 days
Client testimonials
What our clients say
Insights
Technical articles
-
قراءة دقيقتين
Laser, oxy-fuel or plasma? How to choose the right cutting method for your job
The question we hear most with quote requests is: “Should this part be laser cut or oxy-fuel cut?” The answer depends on four things: thickness, material, required tolerance and qu...
-
قراءة 3 دقائق
A practical guide to ASME B16.5 flanges: types, classes and how to order them
A flange looks simple, but the wrong type or class can mean a leak on a pressure line or a whole plant shut down. ASME B16.5 is the most widely used standard in Saudi Arabia and th...
-
قراءة دقيقتين
How to protect steel water tanks from corrosion in a coastal climate
High humidity and airborne salt in Jeddah and other coastal cities make one of the most corrosive environments for steel — usually category C5 under ISO 12944. A poorly protected t...
Have a drawing? Get a quote within one working day
Upload a DWG, DXF or PDF and our engineers will reply with price and lead time.
