12 kW fiber laser (plate)
- Bed size
- 3000 × 12000 mm
- Carbon steel
- up to 40 mm
- Stainless steel
- up to 30 mm
- Aluminium
- up to 25 mm
- Accuracy
- ±0.1 mm
Fiber laser cutting to ±0.1 mm
A 12 kW laser on a 3 × 12 m bed and a 6 kW sheet laser — clean edges with no secondary finishing, from a single part to thousands.
Why laser?
The fastest route from DXF file to finished part
Laser accuracy saves you finishing and on-site rework.
A fiber laser cuts carbon steel, stainless, aluminium and brass with a kerf under 0.3 mm and a very narrow heat-affected zone, so parts stay flat and true to the drawing.
We cut with nitrogen for bright, oxide-free edges on stainless and aluminium, and with oxygen for thick carbon steel. Every batch gets a dimensional check before it ships.
- Holes down to plate thickness in diameter
- Laser marking and part numbering
- Automatic nesting to reduce scrap
- Bending, welding and coating after cutting
Machinery
Our laser machines
Two machines covering thin sheet and thick plate up to 12 m long.
-
-
6 kW fiber laser (sheet)
- Bed size
- 3000 × 1500 mm
- Specification
- Automatic shuttle table
- Carbon steel
- up to 25 mm
- Stainless steel
- up to 16 mm
Maximum cutting thickness
Thickness by material
- Carbon steel
- 40mm
- Stainless steel
- 30mm
- Aluminium
- 25mm
- Max plate length
- 12m
Why choose us
Common applications
Examples of parts we cut every day.
-
Base plates & connections
Bolt holes exactly where they belong for fast structure erection.
-
Machine parts
Sprockets, cams, arms and guards to tight tolerances.
-
Architectural panels
Façades, decorative screens and signage in steel and Corten.
-
Enclosures & panels
Cut and folded sheet for electrical and control cabinets.
-
Tank components
Roofs, nozzles and stiffener rings ready for rolling and welding.
-
Thin flanges & rings
Flat flanges and rings accurate enough to skip machining.
Materials we work with
-
ASTM A36
-
S355JR
-
ASTM A516 Gr.70
-
ASTM A105
-
SS 304L
-
SS 316L
-
Duplex 2205
-
AL 5083
-
Hardox 450
-
Corten A
-
Galvanised G90
Cutting in action

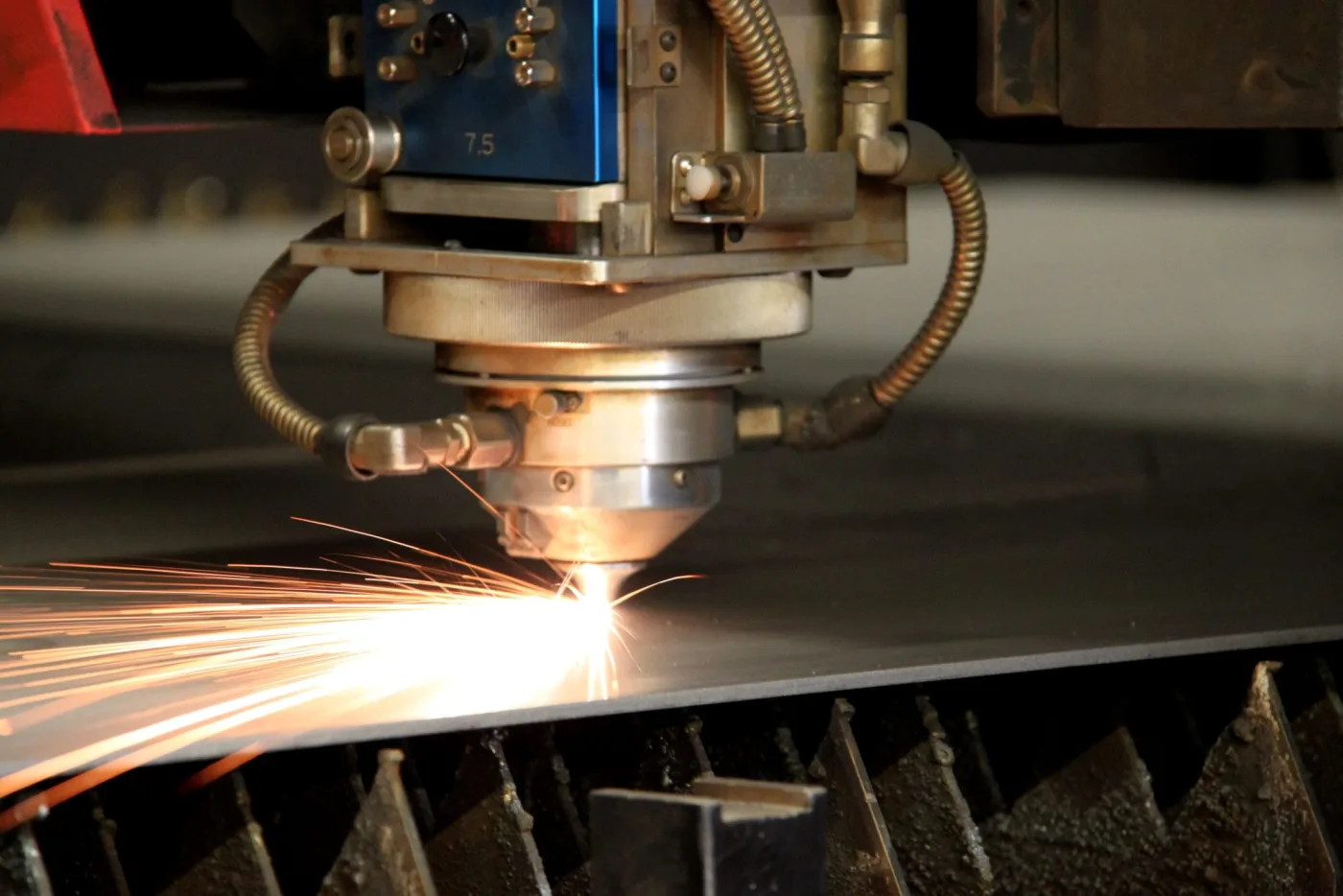

Our cutting line runs on thick plate across shifts to meet urgent deliveries.
FAQ
Laser cutting questions
-
±0.1 mm on most thicknesses up to 20 mm, and ±0.2 mm on thicker plate.
-
-
-
Send your DXF and get a price today
Tell us material, thickness and quantity — we reply within one working day.
