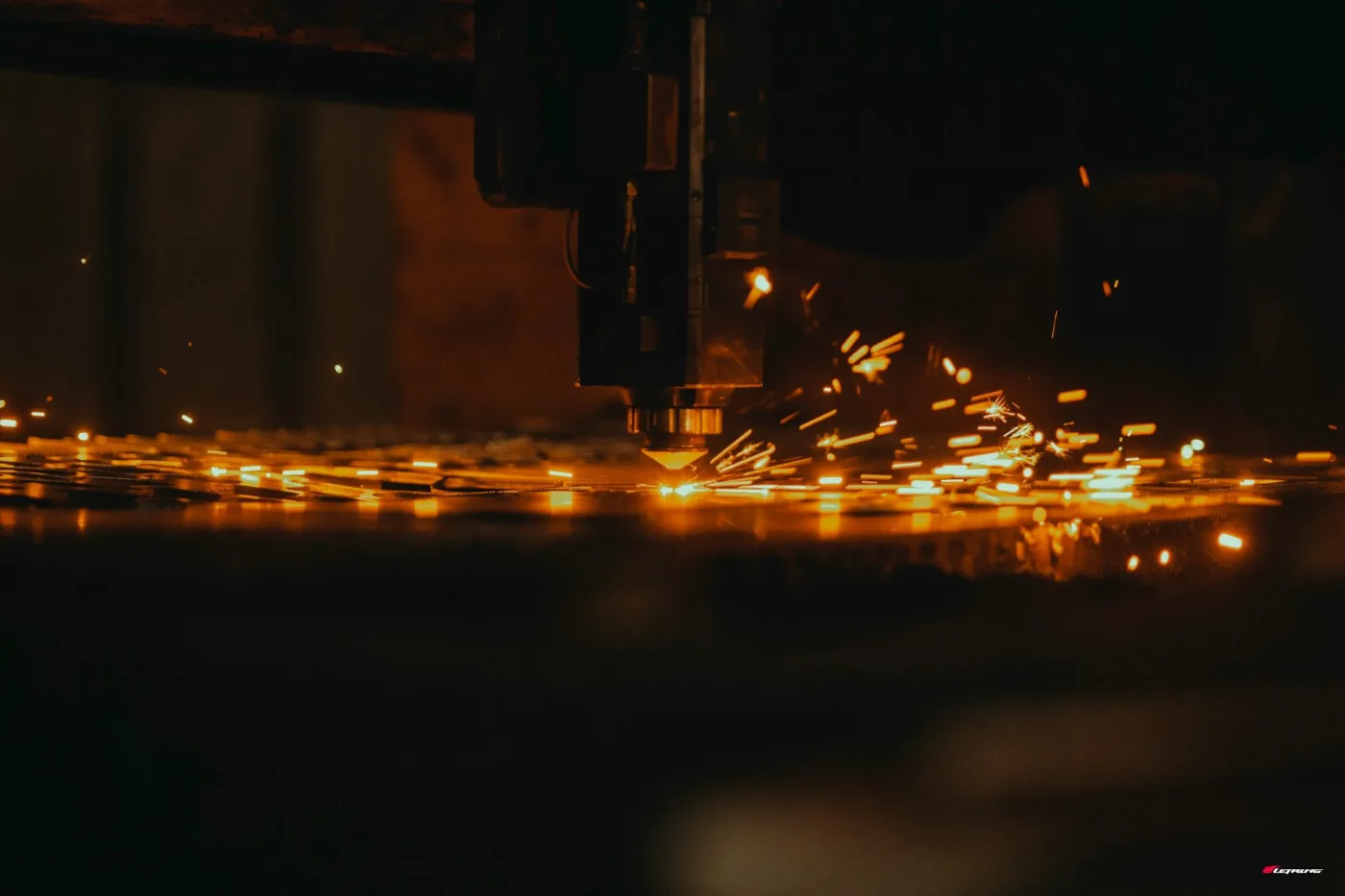

CNC oxy-fuel & plasma gantry
- Bed size
- 4000 × 14000 mm
- Oxy-fuel
- up to 150 mm (4 torches)
- 400 A plasma
- up to 50 mm
- Specification
- 3D bevel head ±45°
Thick plate cutting up to 150 mm
A 14 m CNC gantry with four oxy-fuel torches and a 400 A plasma head with 3D bevelling — for flanges, base plates and heavy machine parts.
Heavy plate
When thickness goes beyond laser
Oxy-fuel is the most economical way to cut carbon steel above 40 mm, and its cost barely rises with thickness. Plasma is fastest on medium plate and also cuts stainless and aluminium.
Our engineers pick the right process for each part, and can combine both in one order for the best price.
- Plates up to 4 × 14 m
- Four torches cutting at once
- V, Y, K and X bevels
- Deslagging and edge cleaning
Choose the process
A quick comparison of our thermal cutting options.
Oxy-fuel for carbon steel
The most economical choice for 20–150 mm plate, with square edges ready for machining and welding.
What is included
- Up to 150 mm
- Carbon and low-alloy steel
- 4 simultaneous torches
Machinery
Thermal cutting equipment
A large CNC gantry and a QC lab for dimensional and edge checks.
-
-
Quality control
- Specification
- Dimensional inspection & reports
- Specification
- Coating & wall-thickness gauging
- NDT
- MT, PT, UT, RT
Our work
Completed cutting work
Heavy parts and flanges cut from thick plate.
-
316L flange package for a desalination plant
Flanges · Yanbu · 2024
-
Laser-cut architectural façade panels
Cutting · Riyadh · 2025
-
120 mm base plates for port cranes
Cutting · Jeddah · 2025
-
Flanges and spools for cooling-water lines
Flanges · Dammam · 2022
FAQ
Thermal cutting questions
-
No — oxy-fuel only works on carbon steel. We cut stainless with plasma or laser.
-
-
Got thick plate to cut?
Send the drawing with thickness, steel grade and quantity.
